BZGNSS BZ-181 FPV GPS Module – Dual Protocol Drone GPS for RC FPV Drone Racing Fixed-Wing Long-Range Flight Compatible with F405 F722 Flight Controller by Speedybee

Price: $27.99
(as of Apr 21, 2024 19:14:19 UTC – Details)

Product Description

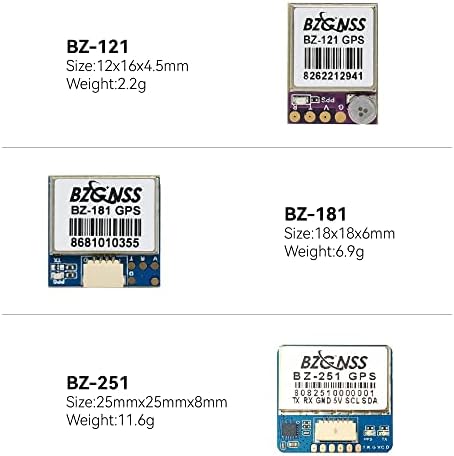

PRODUCT DISPLAY

PAD WIRING DIAGRAM

SMALL SIZE AND LIGHT WEIGHT

M10 chip weight is 35% smaller than M8

BZ-181 Specifications:

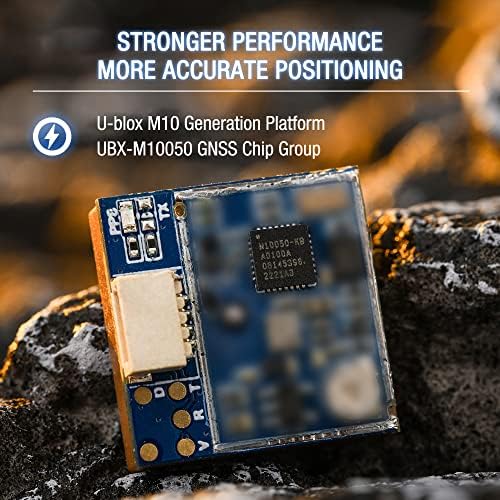

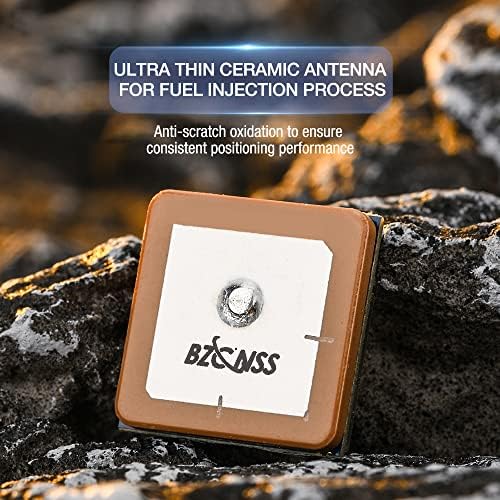

Chip:u-blox M10050(Ten Generation Chip)Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)FLASH:SupportedFrequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1Power:5VSize:18x18x4.8mm(Thinnest point)18x18x6mm(Including thickness of terminal block)Interface:SH1.0 4PinWeight:6.9gAntenna:Ultrathin Ceramic Antenna / Standard Ceramic AntennaReceiving channels:72 search channelsBaud rate:115200dpsOutput Protocol:NMEA / UBLOX (Dual protocol)Output Frequency:1Hz-10Hz. Default 10HzSpeed accuracy:0.05m/sHorizontal Positioning Accuracy: 2D ACC 1.5m(open air)Receiving Sensitivity:Trace-162dBm / Capture -160dBmDynamic characteristics:Altitude:50000mSpeed:500m/sAcceleration:4GOperating temperature:-40°C~+85°CStorage temperature:-40°C~+105°CIndicator light:PPS lamp – the lamp does not work when it is not positioned, and the red lamp flashes after 3D positioning

Note:

Due to GPS chip is a new generation chip, flight control needs firmware 4.29 and above, the firmware below 4.29 uses NMEA protocol.

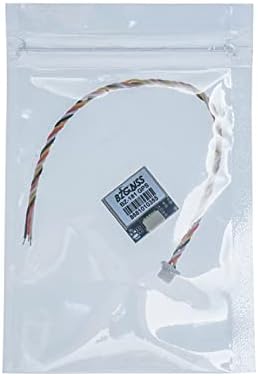

Package Included:

1x BZGNSS BZ-181 GPS Module

Parcel Dimensions ‏ : ‎ 11.61 x 7.7 x 0.89 cm; 9 g
Manufacturer ‏ : ‎ BZGNSS
ASIN ‏ : ‎ B0C4XKYCRQ
Item model number ‏ : ‎ BZ-181
Country of origin ‏ : ‎ China

【Dual-protocol Support】: This GPS module supports both NMEA and UBX protocols, giving you the flexibility to use it with a wide range of devices and flight controllers.
【High-precision Positioning】: With advanced GPS positioning technology, this module provides accurate and reliable position information to help you navigate your aircraft with confidence.
【Easy to Install】: The compact and lightweight design of this module makes it easy to install on any RC airplane or FPV fixed-wing aircraft.
【Fast Satellite Acquisition】: The BZGNSS GPS module is designed to quickly acquire satellite signals, even in challenging environments, so you can get up in the air and flying faster.
【More Features】: M10 Dual Protocol GPS Module; Small size and Light weight; Support BDS satellite;Built-in battery design to avoid troubles from battery’s poor contact;
